MD-LAMBDA-VIEW Visualization
With MD-Lambda-View, you have a complete overview of all important engine parameters at all times – precise, in real time, and directly while driving. The integrated Wi-Fi web server clearly displays all measured values on Wi-Fi-enabled devices. You can easily access the data via smartphone, tablet, or laptop – no app required, directly in your browser. The compact lambda display with Wi-Fi interface records and stores all relevant values that are crucial for carburetor tuning, EFI tuning, and engine analysis.
Live data in real time via Wi-Fi:
Current lambda value
Speed (RPM)
Throttle valve or carburetor slide position (TPS)
On-board voltage (VCC)
All values are continuously updated by the integrated web server and visualized in a clearly structured web interface. This allows you to instantly see in which load and RPM ranges the mixture is too rich, too lean, or optimally balanced, even while driving. Thanks to the integrated data logging, all measured values can be exported as a CSV file via the web interface, for example, for Excel, Google Sheets, or MD-Lambda-View 3D-Surface . This enables the creation of detailed lambda mappings and precise analysis of at which RPM and throttle position mixture correction is necessary. With MD-Lambda-View, you get a powerful, Wi-Fi-based lambda measurement system that delivers professional tuning and diagnostic data without requiring permanently mounted displays and remains virtually invisible in the vehicle.
Or you could use MD-Pico!

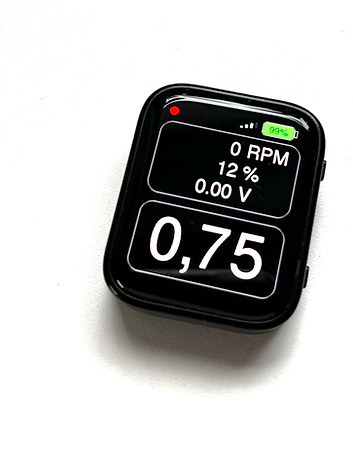

MD-Pico is a mini-display, specially developed for MD-Lambda-View, in a matchbox format. Despite its extremely compact design, MD-Pico offers full data logger functionality: The integrated SD card slot continuously records the lambda value, engine speed, throttle position (or carburetor slide position), and battery voltage as soon as an SD card is inserted.
The built-in battery offers up to 2 hours of runtime, ideal for extensive measurement drives. For longer journeys or stationary operation, the MD-Pico can easily be powered via USB-C.
What does MD-Pico do?
For those who do not want to use MD-Lambda-View via their mobile phone, for example because they need navigation while driving, MD-Pico offers a complete visual representation of all relevant engine parameters directly on the device.
The brilliant 368×448 pixel AMOLED display shows:
-
Lambda value in large numbers,
-
Engine speed, throttle valve or carburetor slide position and on-board voltage in smaller numbers,
-
Battery status,
-
an information indicator for logging (red/green) or the access point mode (yellow),
-
a WIFI display
This way you always have all the important values in view, without additional devices.
Web server functions via WLAN
MD-Pico has an integrated web server that allows you to:
-
Change the Wi-Fi password for accessing MD-Lambda-View,
-
You can download the log files in CSV format,
These CSV files can be directly imported into MD-Surface-3D and used there as a 3D surface.
visualize and analyze.
Installation & Use
Due to its small size, MD-Pico can easily be mounted in the driver's field of vision, ideal for motorcycles and other vehicles with limited space.
A quick press of a button is all it takes to turn off the display, for example, when no screen is needed. MD-Pico continues to work in the background, however, continuously writing log data to the SD card, even in your pocket.
This makes MD-Pico the perfect companion for carburetor tuning, EFI tuning, engine analysis, long-term logging and mobile lambda value monitoring.
